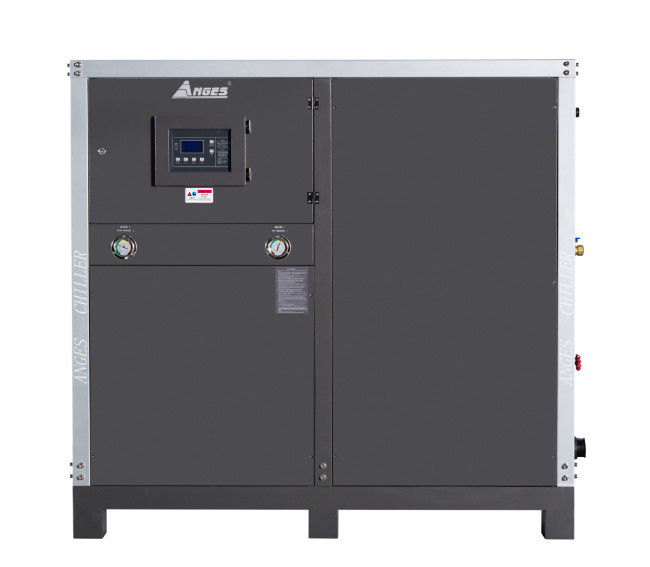

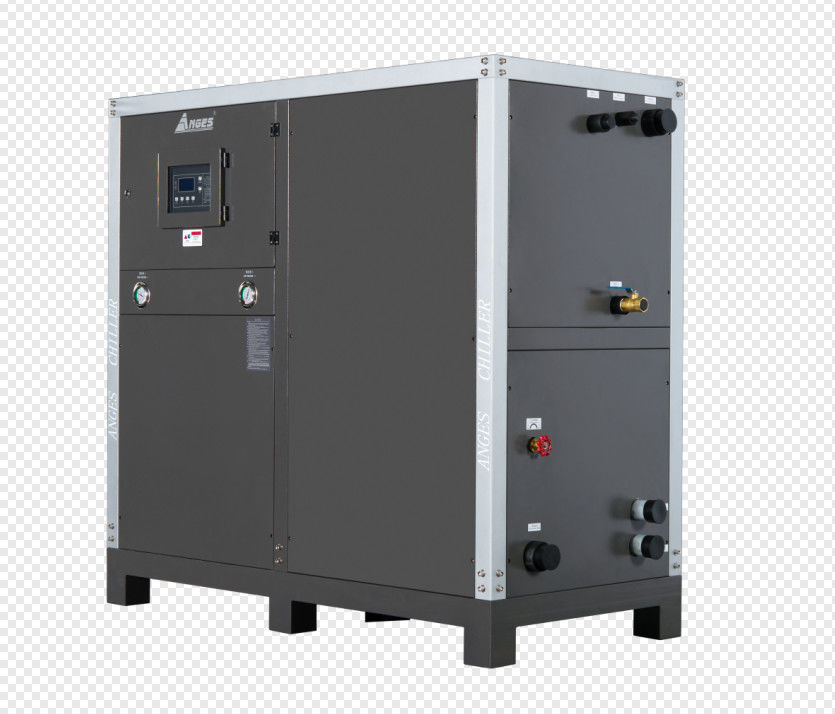

Name: Water Cooled Chiller with Hermetic Scroll Compressor and Shell Tube Heat Exchanger
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: 15hp
Price: 2,100.00 USD
Availability: InStock

Ev > Ürünler > Endüstriyel Su Soğutucu >

Water Cooled Chiller with Hermetic Scroll Compressor and Shell Tube Heat Exchanger

Place of Origin:

China

Marka adı:

ANGES

Model Number:

15hp

Bize Ulaşın

Bir teklif isteği

Water Cooled Chiller with Hermetic Scroll Compressor and Shell Tube Heat Exchanger

Ürün Detayları

Fob Port:

SHENZHEN

Total Input Power:

51KW

Compressor Type:

Scroll

Water Outlet Temp:

12c

Condenser Type:

Shell and Tube

Cooling Mode:

Water Cooling

Safety Protection:

High/Low Pressure Protection, Overload Protection, Anti-freezing Protection

Ödeme ve Gönderim Koşulları

Minimum Order Quantity

Packaging Details

Plywood case

Delivery Time

30 days

Payment Terms

L/C, T/T

İLGİLİ ÜRÜNLER

10 Ton Chiller 10 ton su soğutmalı chiller Endüstriyel Su Chiller Enjeksiyon Kalıplama için Yüksek Verimli Chiller Sistemi

En İyi Fiyatı Alın

50HP chiller 50Ton Endüstriyel Hava Soğutmalı Su Soğutucu Enjeksiyon Kalıplama Makinesi Modüler Hava Soğutmalı Scroll Chiller

En İyi Fiyatı Alın

8 Ton 8hp Endüstriyel Su Soğutucu Kaydırma Merkezi Su Soğutucu

En İyi Fiyatı Alın

6 Ton 6hp Endüstriyel Su Soğutmalı Scroll Chiller 6 Tr

En İyi Fiyatı Alın

Bize Ulaşın

86-755-8958-2358

Şimdi İletişime Geçin

Ürün Açıklaması

Shenzhen Anges Machinery Co., Ltd

Technical Parameter of Water-cooled scrolled Type Chiller

Model Item		AWK-15
nominal cooling capacity	Kcal/h	43860
nominal cooling capacity	kw	51
input power	kw	11.7
power supply	3PH~380V/50HZ
refrigerant	type	R22
refrigerant	type of control	Expansion valve
compressor	type	Hermetic scroll type
compressor	Power (kw)	10.2
condenser	type	Shell and tube
	Cooling water flow(m³/h)	10.6
	Inlet/outlet pipe caliber(inch)	2
evaporator	type	Shell and tube
	Chilled water flow(m³/h)	8.8
	Tank volume(L)	175
	Inlet/outlet pipe chiller(inch)	2
Water pump	Power(KW)	1.5
Water pump	Lift(m)	20
Safety protection	compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight	kg	850
Dimension	mm	19509501700

Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Configuration table for Air-cooled scrolled Type Chiller

Item	Main Parts	Brand	Origin
1	Compressor	Panasonic	Japan
2	Condenser	ANGES	China
3	Evaporator	ANGES	China
4	Drying Filter	Emerson	USA
5	Controller PCB	Punp	China
6	Electric Components	Schneider	France
7	Pressure Controller	Fensheng	China
8	Oil Pressure Gauge	Jiunai	China
9	Water Pump	Minamoto	China
