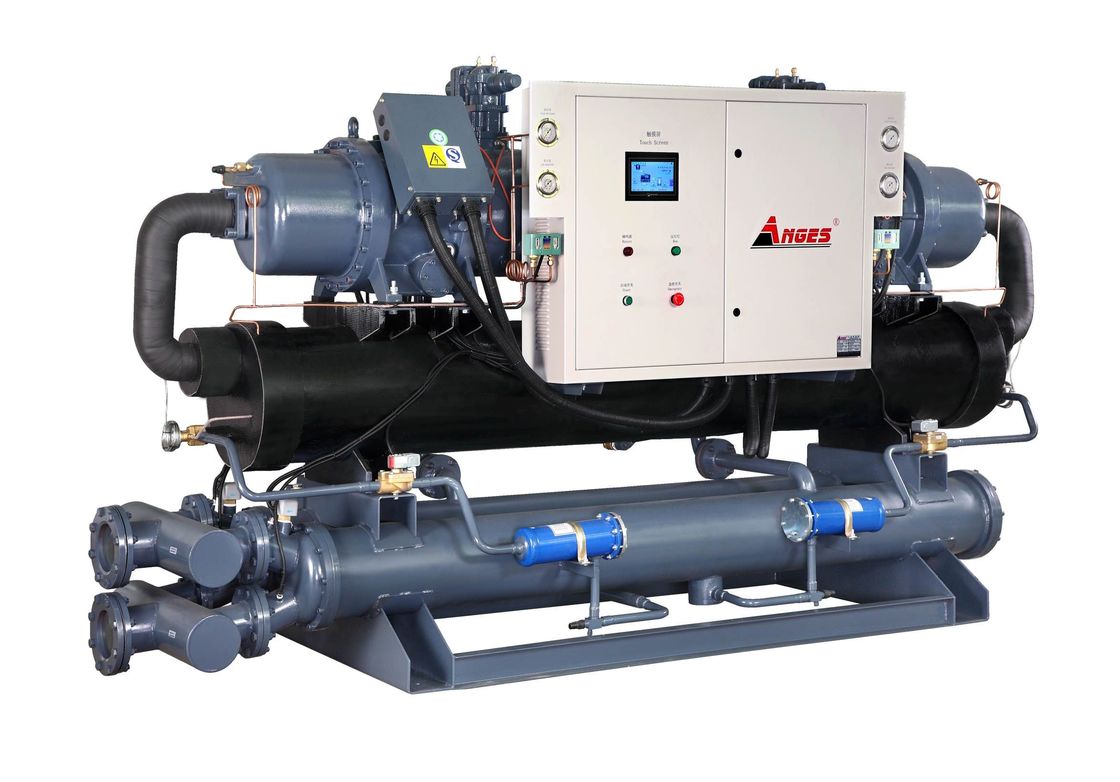

Name: AGS-100WSH 100HP Water Cooled Screw Chiller for Plastic Extrusion and Mold Processing with Semi-Hermetic Screw Compressor
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: 100HP
Price: 2,100.00 USD
Availability: InStock

Ev > Ürünler > Vidalı tip soğutucu >

AGS-100WSH 100HP Water Cooled Screw Chiller for Plastic Extrusion and Mold Processing with Semi-Hermetic Screw Compressor

Place of Origin:

China

Marka adı:

ANGES

Model Number:

100HP

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Compressor:

Hanbell

Expansion Valve:

Emerson

cooling capacity:

373.9kw

input power:

73.9kw

Solenoid Valve:

Emerson

Drying Filter:

Emerson

Oil Pressure Gauge:

REFCO

Touch Screen:

WEINTEK

PLC Controller:

Siemens

Electrical components:

Schneider

Ödeme ve Gönderim Koşulları

Minimum Order Quantity

Packaging Details

Plywood case

Delivery Time

30 days

Payment Terms

T/T, L/C

İLGİLİ ÜRÜNLER

AGS-100WSH 100HP Water Cooled Screw Chiller for Plastic Extrusion and Mold Processing with Semi-Hermetic Screw Compressor

En İyi Fiyatı Alın

Video

200 HP hava soğutmalı soğutucu - Meleklerin olağanüstü seçimi

En İyi Fiyatı Alın

Video

Fabrika Doğrudan 240HP Su Soğutmalı Vidalı Soğutucu - Uygun Maliyetli Soğutma Çözümü

En İyi Fiyatı Alın

100HP hava soğutmalı vida kompresör soğutucu Endüstriyel kimyasal soğutucu PVC PE PP boru için Ex

En İyi Fiyatı Alın

Bize Ulaşın

86-755-8958-2358

Şimdi İletişime Geçin

Ürün Açıklaması

100HP Screw Type Chiller Water Cooled Industrial Chillers Water Chiller unit For Plastic mold

Plastic extrusion processing is a commonly used plastic processing method.

It can melt plastic and extrude it through a die to make tubes, plates, rods and other materials of various shapes. During the extrusion process, the plastic raw material needs to be heated and melted first, and then the molten plastic is sent to the die through the screw.

The shape of the extruded material is then determined by the shape of the die.

Central chiller specification

Model Item		AGS-100WSH
nominal cooling capacity	kcal/h	321554
	kw	373.9
input power	kw	73.9
max running current	A	168.4
power supply	3PH-380V-50HZ
refrigerant	type	R22
	type of control	expansion valve
compressor	type	semi-hermetic screw
	quantity	1
	start-up mode	Y-△
	capacity control	0-25-50-75-100
evaporator	type	shell and tube
	chilled fluid flow (m³/h)	64.3
	pipe diameter (inch)	4
condenser	type	shell and tube
	cooling water flow (m³/h)	77
	pipe diameter (inch)	4
safety protection	compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
dimension	mm	294510101870
net weight	kg	1720
running weight	kg	1960

The importance of plastic cooling rate

1.In plastic injection molding processing, the cooling of plastic materials is a major factor affecting production efficiency and product quality.

2.Cooling rates that are too fast or too slow can have negative effects on plastic products.

The impact of too fast cooling rate on product quality

1.In plastic processing, rapid cooling can improve production efficiency, but it will cause problems such as product deformation and shrinkage.

2.Rapid cooling will produce high stress on the surface of the plastic, which will affect the internal structure of the plastic, leading to problems such as shrinkage, dimensional deviation and surface smoothness of the product.

3.In addition, too fast cooling rate will cause bubbles, cracks and other defects inside the product, affecting the service life of the product.

The impact of too slow cooling rate on production efficiency and cost

1.Too slow a cooling rate will reduce production efficiency and lead to increased costs.

2.Because slow cooling causes the molecular structure inside the plastic to gradually form, it prolongs the entire processing cycle and increases costs.

3.In addition, a too slow cooling rate will increase the shrinkage of the product, resulting in substandard product dimensions.

How to select the model of the chiller ?

We need to know the heat load of your process or chiller cooling capacity.
Required water temperature, water pressure and flow rate.
Application and power supply in local.
Max. Ambient temperature in summer day
Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
